IVF Cryogenic Tubes

  • KANGJIAN

  • KJ556-18/KJ556-19/KJ556-20

Availability:
Quantity:

Specifications

REF.
Specifications Material

Temperature

range

Appearance Qty in bag Qty in case

Detailed

information

Original REF.

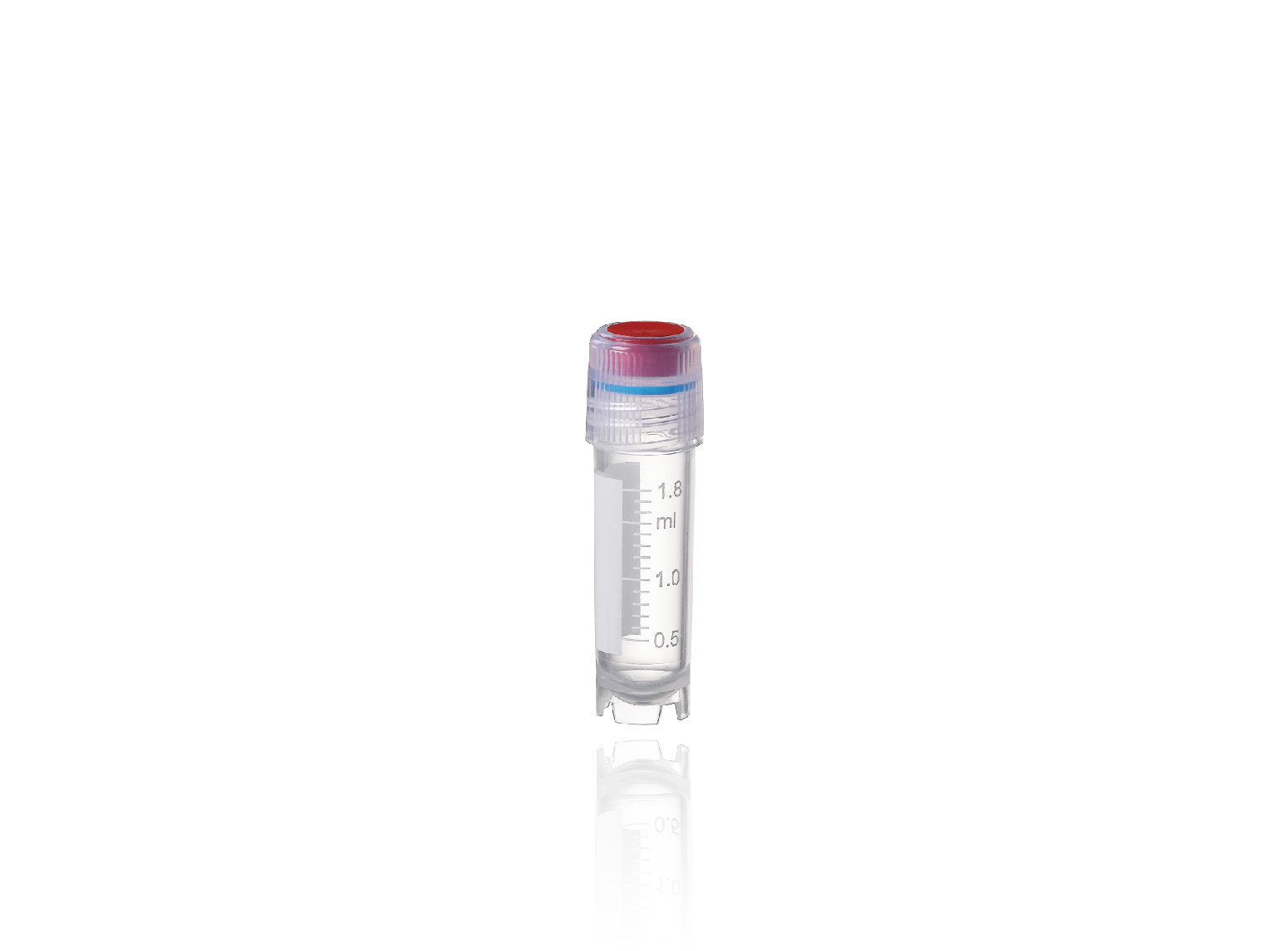

KJ556-18

1.8ml

Tube: PP Cap:Double-shot injection PP+TPE -196~121˚C
Ø12.5×49mm 500 5000 Cryogenic tubes should only be stored in the  vapor phase of liquid nitrogen. Do not submerge  the tubes in liquid nitrogen, as rapid pressure  buildup inside the tube may lead to accidents.
194-1802

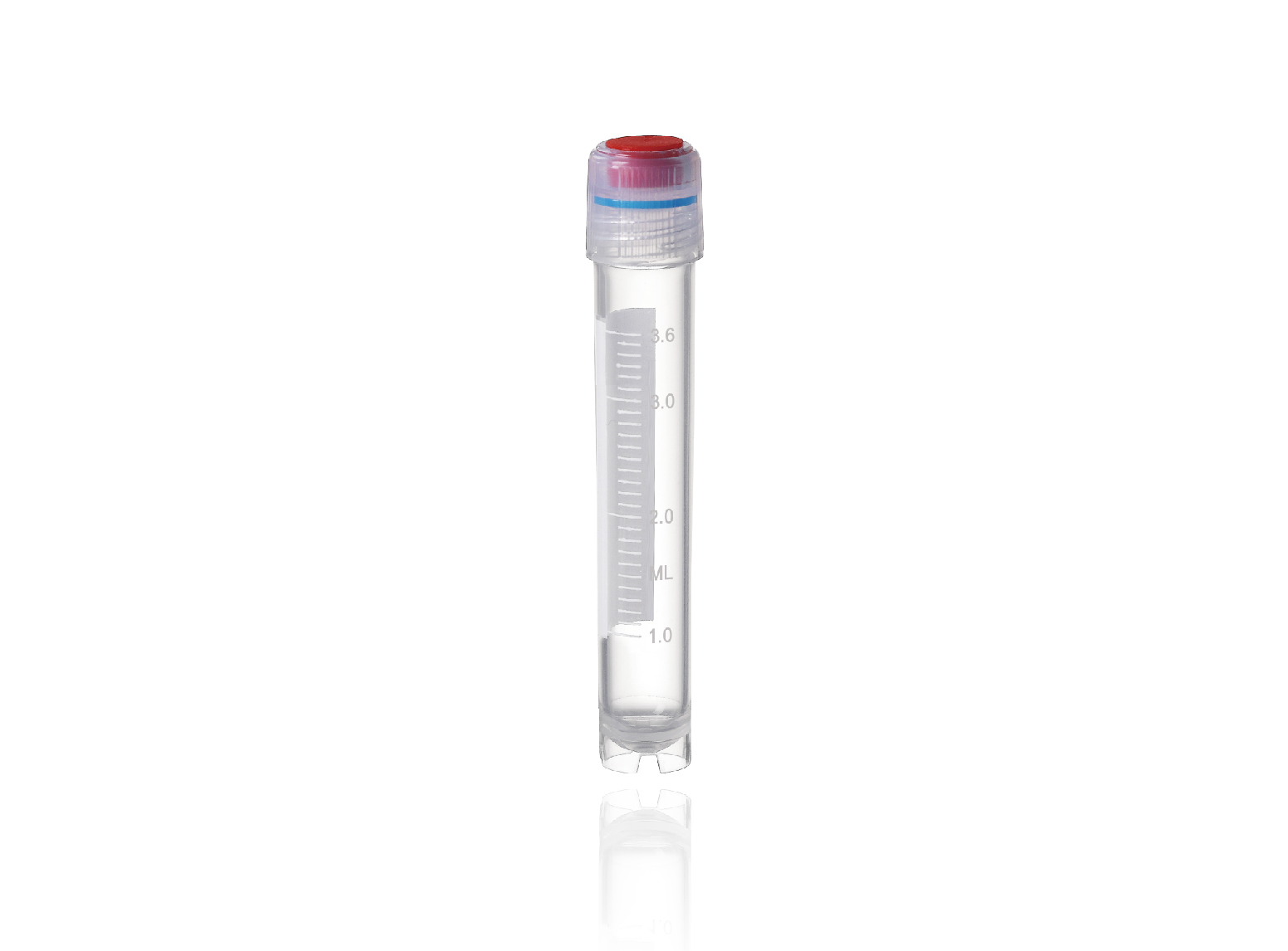

KJ556-19

3.6ml

Ø12.5×77mm  200 2000 194-3502

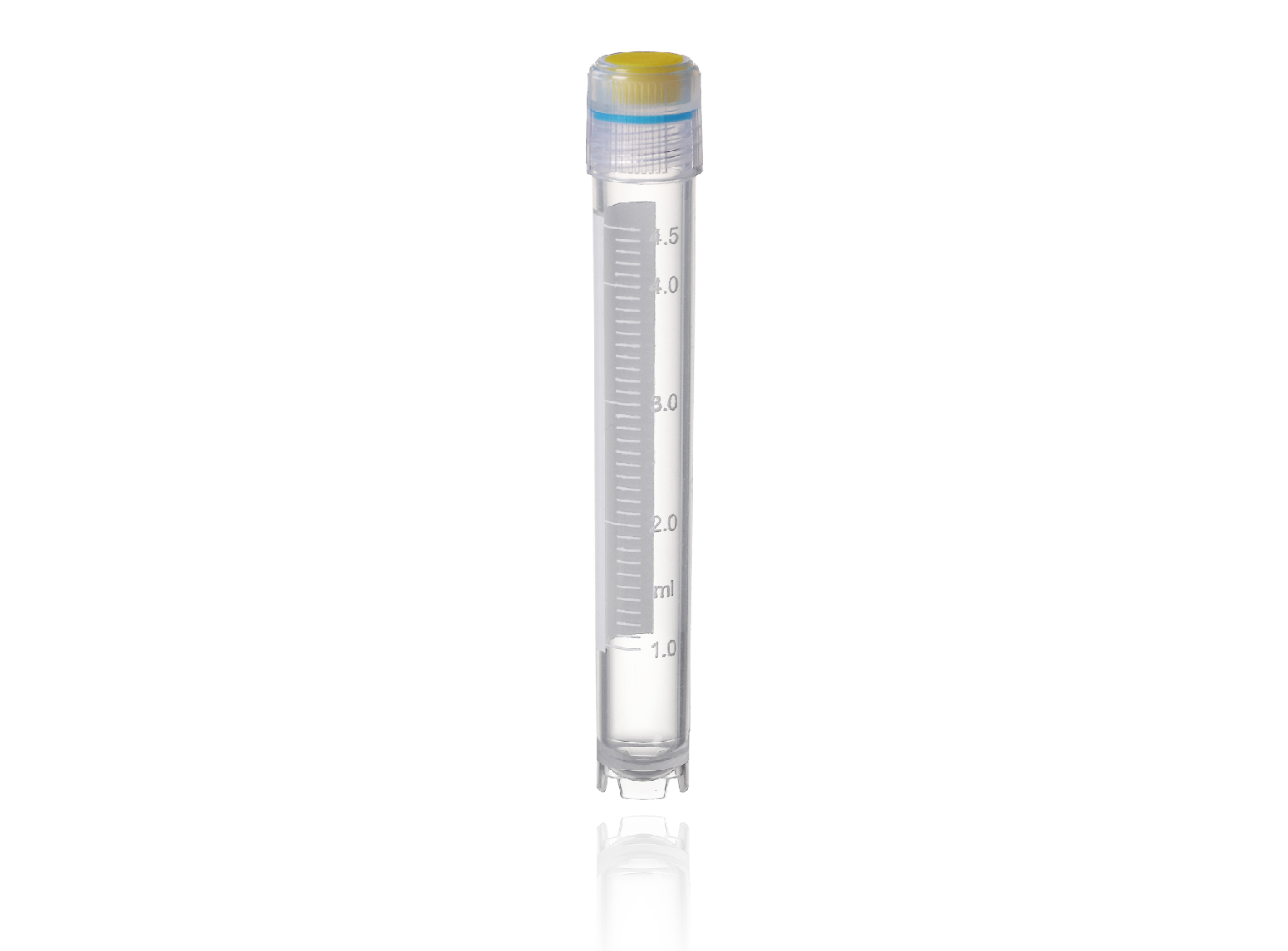

KJ556-20

4.5ml

Ø12.5×90mm 200 2000 194-4502

Product Overview

● The containers used for semen and oocyte collection or temporary storage during the IVF process are produced from medical-grade polystyrene (PS) or polypropylene (PP) in a purified cleanroom.

● The products are free from scratches, with uniform thickness, and the volume markings are clear and easy to read. The large matte surface allows for easy labeling and annotation by lab technicians.

● No embryotoxicity: free from pyrogens, cytotoxicity, and genotoxicity, ensuring the vitality of sperm and oocytes during complex experimental processes.

● Single sterile packaging, achieving a 10-6 sterile level through radiation.

IVF Cryogenic Tubes

● The cryogenic tubes are made from medical-grade polypropylene (PP) and are produced in a cleanroom environment. They are laboratory  consumables specifically designed for storing biological samples

● They are capable of withstanding low temperatures of -196°C in the vapor phase of liquid nitrogen.

● The caps are made using a double-shot molding process, ensuring no cracking during standard operations. Even at the lowest storage  temperatures, the seal integrity is guaranteed. The external threaded design reduces the risk of sample contamination and ensures the safety of  sperm and oocyte cells inside the tube.

● Free from embryotoxicity: no pyrogens, cytotoxicity, or genotoxicity.

● Sterilized by radiation, achieving a 10-6 sterility level.
