0.75mL/ 0.5mL
KANGJIAN
105-0504
Box body: PP Box lid: PC Tube body: PP+PP, Double-shot molding Tube lid: HDPE+TPE, Double-shot molding
Please specify the specific requirements in the order basket.
Availability: | |
---|---|
Quantity: | |
Specifications
REF. | Production technology | Material | Outer dimension | Volume capacity | Temperature range | Qty in box | Qty in case | Detailed information |
105-0501 | External Thread | Box body: PP Box lid: PC Tube body: PP+PP, Double-shot molding Tube lid: PP | Tube: Ø8.9×34mm Box: 127×85×38mm | 0.75mL | -196~+121°C | 96 | 48 | The cryostorage vials are suggested to be stored only in the gas phase of liquid nitrogen. |
105-1001 | Tube: Ø8.9×52mm Box: 127×85×56.4mm | 1.4mL | 96 | 36 | ||||
105-0504 | Box body: PP Box lid: PC Tube body: PP+PP, Double-shot molding Tube lid: HDPE+TPE, Double-shot molding | Tube: Ø8.9×34mm Box: 127×85×38mm | 0.75mL | 96 | 48 | |||
105-1004 | Tube: Ø8.9×52mm Box: 127×85×56.4mm | 1.4mL | 96 | 36 |
Product Overview

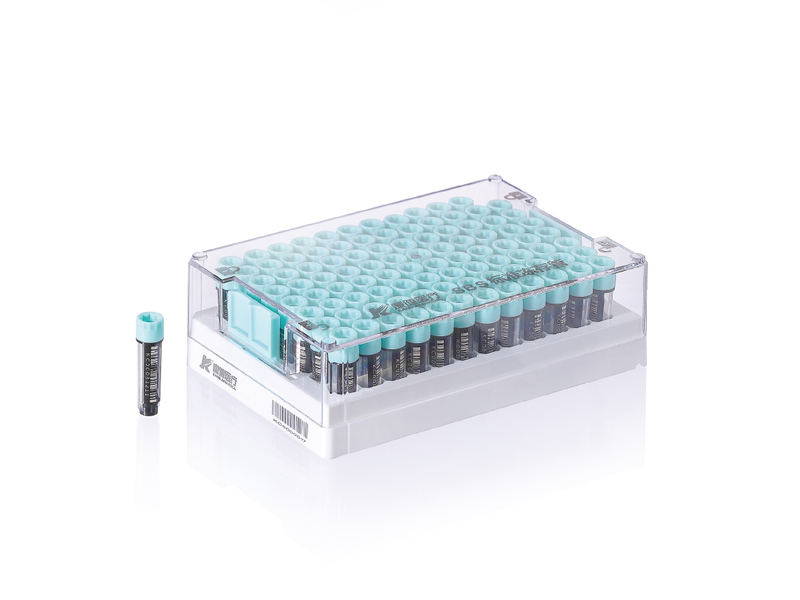

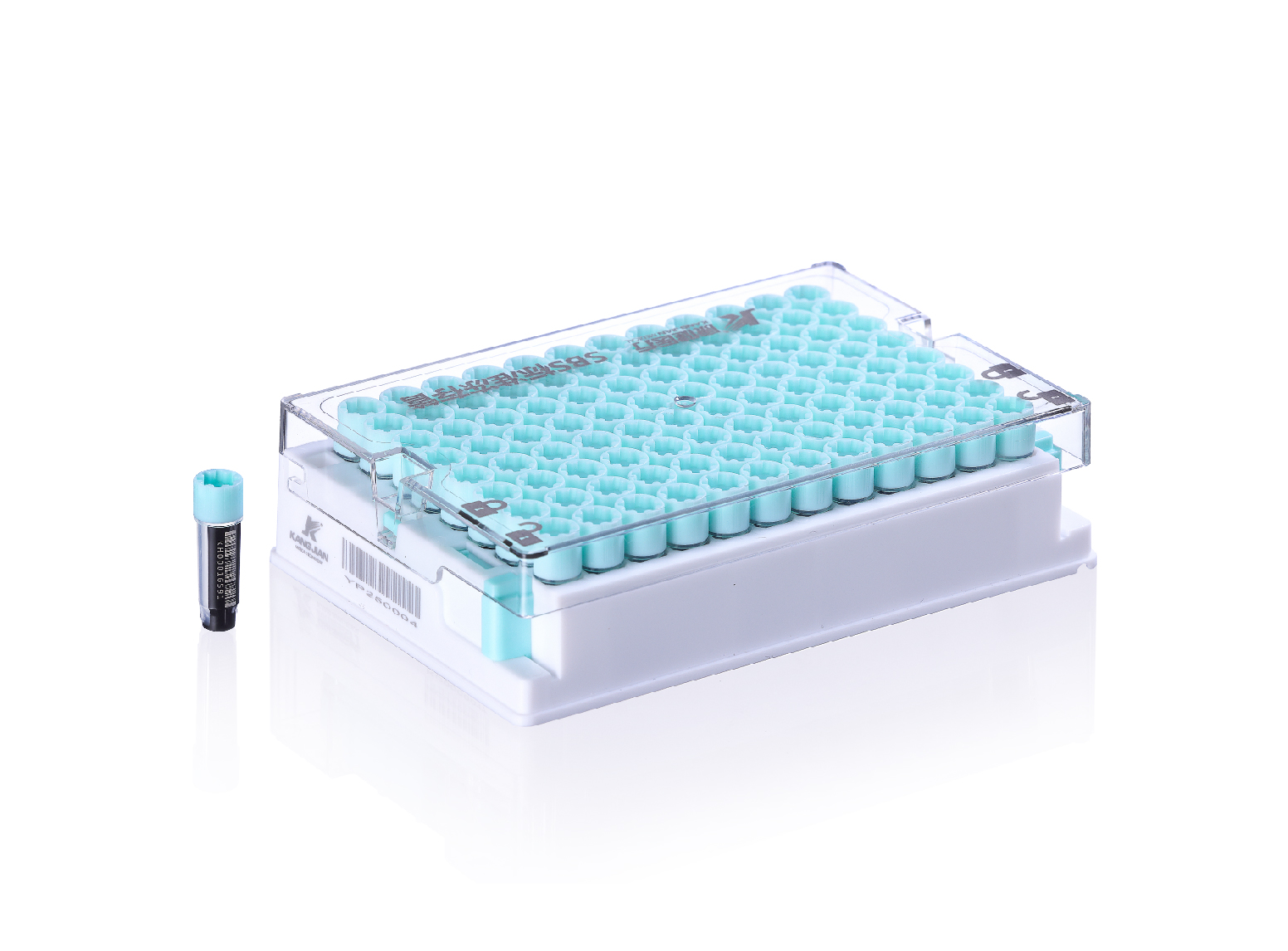

KANGJIAN® SBS standard cryovials adopt the international standard DataMatrix 2D barcode encoding rules and are designed to be compatible with the SBS standard racks that meet the ANSI/SLAS industry standards. They are suitable for use with automated equipment in biobanks and laboratories. The racks and cryovials are highly compatible, robust, easy to use, safe and reliable, with high traceability.
◆ Compatible with laboratory automation equipment (such as liquid workstations, automated refrigerators, etc.), the industry-standard SBS standard racks feature an 8x12 array layout. Racks are marked with multiple codes including barcodes and QR codes, ensuring traceability of the samples in the racks.
◆ The cryovials are made of medical-grade pure polypropylene. They are manufactured using a double-shot molding process, enduring temperatures from -196°C to +121°C, and are safe for storage in liquid nitrogen gas phase, allowing multiple freeze-thaw cycles.
◆ The caps are designed with an integrated sealing gasket to prevent leakage and ensure the seal of the tube. U-shaped bottom of the tubes facilitates the complete utilization of micro-samples.
◆ The bottom of each tube is laser-etched with an international standard DataMatrix 2D barcode, resistant to fading and wear, solvent-resistant, clear and readable. The combination of a QR code and a numeric code on the tube body provides triple assurance for easy identification and high traceability.
◆ Produced in a ISO Class 6 Cleanroom and sterilized by irradiation, the cryovials are free from RNase, DNase, endotoxins, and pyrogens.
Specifications
REF. | Production technology | Material | Outer dimension | Volume capacity | Temperature range | Qty in box | Qty in case | Detailed information |
105-0501 | External Thread | Box body: PP Box lid: PC Tube body: PP+PP, Double-shot molding Tube lid: PP | Tube: Ø8.9×34mm Box: 127×85×38mm | 0.75mL | -196~+121°C | 96 | 48 | The cryostorage vials are suggested to be stored only in the gas phase of liquid nitrogen. |
105-1001 | Tube: Ø8.9×52mm Box: 127×85×56.4mm | 1.4mL | 96 | 36 | ||||
105-0504 | Box body: PP Box lid: PC Tube body: PP+PP, Double-shot molding Tube lid: HDPE+TPE, Double-shot molding | Tube: Ø8.9×34mm Box: 127×85×38mm | 0.75mL | 96 | 48 | |||
105-1004 | Tube: Ø8.9×52mm Box: 127×85×56.4mm | 1.4mL | 96 | 36 |
Product Overview
KANGJIAN® SBS standard cryovials adopt the international standard DataMatrix 2D barcode encoding rules and are designed to be compatible with the SBS standard racks that meet the ANSI/SLAS industry standards. They are suitable for use with automated equipment in biobanks and laboratories. The racks and cryovials are highly compatible, robust, easy to use, safe and reliable, with high traceability.
◆ Compatible with laboratory automation equipment (such as liquid workstations, automated refrigerators, etc.), the industry-standard SBS standard racks feature an 8x12 array layout. Racks are marked with multiple codes including barcodes and QR codes, ensuring traceability of the samples in the racks.
◆ The cryovials are made of medical-grade pure polypropylene. They are manufactured using a double-shot molding process, enduring temperatures from -196°C to +121°C, and are safe for storage in liquid nitrogen gas phase, allowing multiple freeze-thaw cycles.
◆ The caps are designed with an integrated sealing gasket to prevent leakage and ensure the seal of the tube. U-shaped bottom of the tubes facilitates the complete utilization of micro-samples.
◆ The bottom of each tube is laser-etched with an international standard DataMatrix 2D barcode, resistant to fading and wear, solvent-resistant, clear and readable. The combination of a QR code and a numeric code on the tube body provides triple assurance for easy identification and high traceability.
◆ Produced in a ISO Class 6 Cleanroom and sterilized by irradiation, the cryovials are free from RNase, DNase, endotoxins, and pyrogens.
